Description
PRODUCT SPECIFICATION OF FFC1108-1:
1) Display: 2inch TN/ANTI-UV LCD
2) Back lighting: White LED
3) Depth Capability: 328feet(100m)
4) Power Requirement: 4xAAA alkaline batteries（not included）
5) Waterproof design: level-4 (spray-water-proof)
6) Show water depth, fish location, and bottom grass & rock
7) User selectable sensitivity,depth units, and fish alarm setting
8) Operational Temperature: 14degF to 122degF(-10degC to 50degC)
Please put the cable transducer in fishing spot.
The monitor displays information from sonar sensors that detect water and fish.

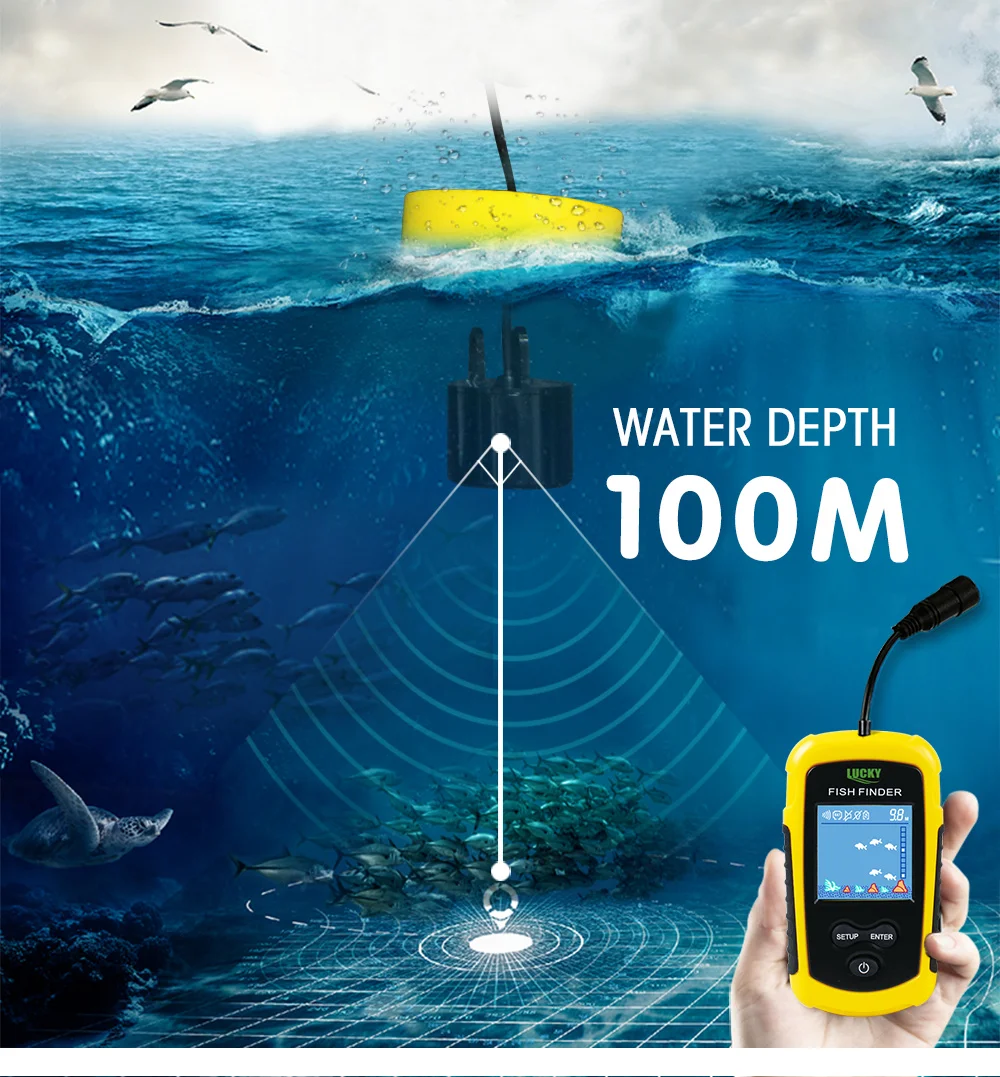

The transducer can detect water up to 100m,and beam angle 45degree in 200khz.

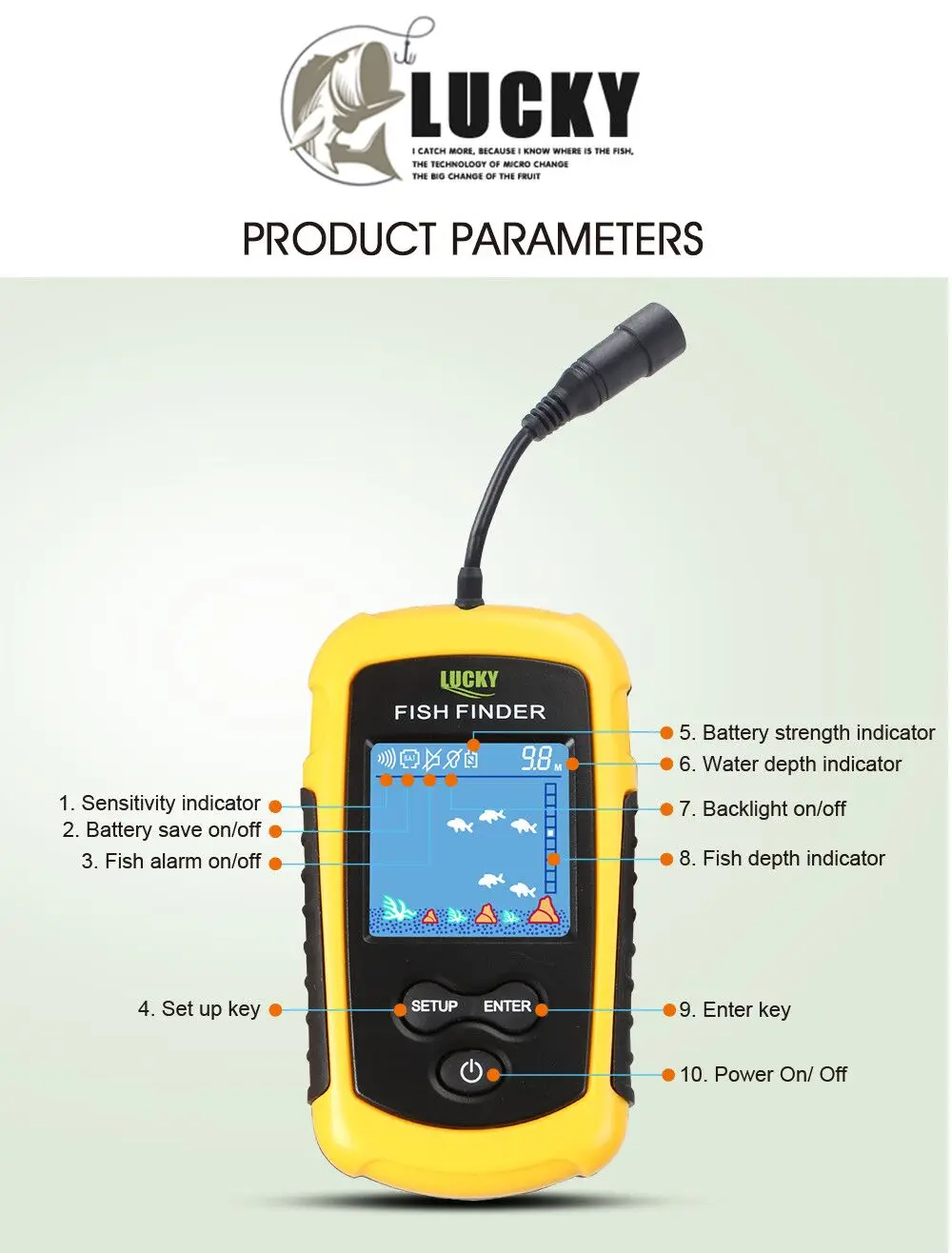

1.Sensitivity indicator
2.Battery save on/off
3.Fish alarm on/off
4.Set up key
5.Battery strength indicator
6.Water depth indicator
7.Backlight on/off
8.Fish depth indicator
9.Enter key
10.Power On/Off
1.Float
2.Transducer
3.Cable
Different fishing ways:
1.Night Fishing Probe
2.Turbid Water Probe
3.Ice Fishing Probe
Attention:
1.Kindly remind that FFC1108-1 has only wired mode, and you cannot match the sensor and monitor randomly.
2.Use fish finder in smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the the detection can be inaccurate.
Please use fish finder in outdoor deep water.
3.The monitor cannot display the size of the fish.
4.Manual:English/German/Russian/Japanese
