Description
Face Detection&Face playback
Face Detection and Face playback and Face Record;
Face Detection and Face Playback;
Quickly capture face images and quickly play back face videos;
Face Detection:automatically capture face images;
Face Playback:Intelligent Face video playback,saving time,not missing every details.
Intelligent Face Playback:Intelligent Face video playback,saving time,not missing every details.
Full color night vision
Don’t Worry about day or night Built-in smart white LED light, record full color all day

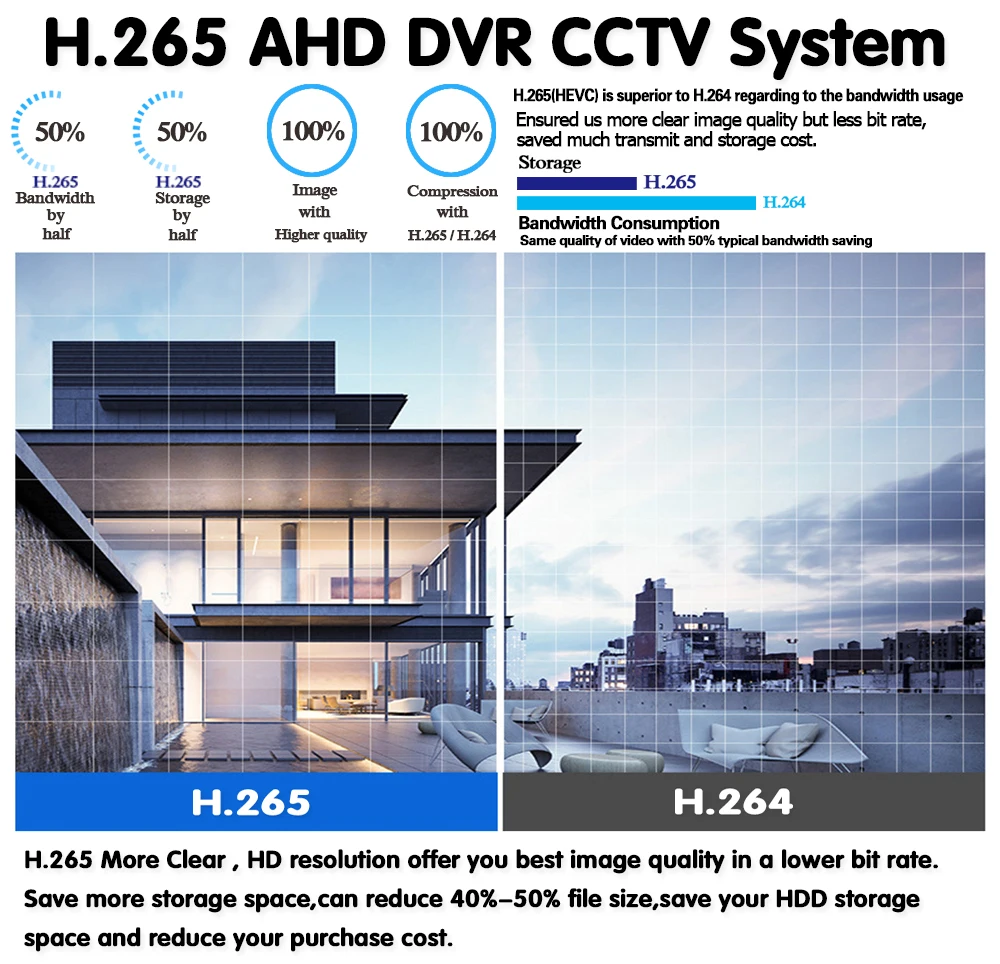

Why chooes H.265
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.
Remote access anywhere,anytime
No matter where you are, you can remotely access the camera to see live streaming and stayconnected.Remotely view the camera via: free Xmeye App on your mobile device, free CMS/VMS Client on your computer, IE web browser Etc.
Instant Email Alert
Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .
Motion detection
This system is designed to send an email alert when any motions are detected and allows you to record only when motion is detected.
Smart playback
You can easy find the video footage you’d like to playback, Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.
HD 4K High Definition Display
High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 8MP Resolution.The angle will be more larger,and the image will be more clearer.
IP 66 Waterproof
Use them as outdoor cameras or indoor cameras, as they are built tough to withstand whatever the weather throws as then:rain,snow,dust and hot days .with IP66 weatherproof rating ,and cables threaded through the stand for extra protection ,ensure you can reply on their performance,day in ,day out. Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.

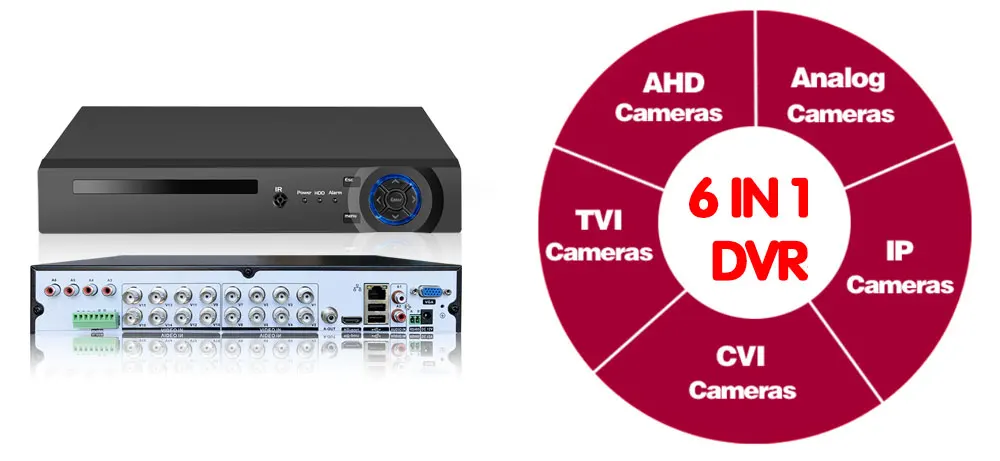

6 in 1 AHD DVR NVR Hybrid video recorder
You can freely enjoy six connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 6 recordering modes.for your option:AHD /CVBS / TVI / CVI /XVI / IP. You can get HD quality video in each mode.

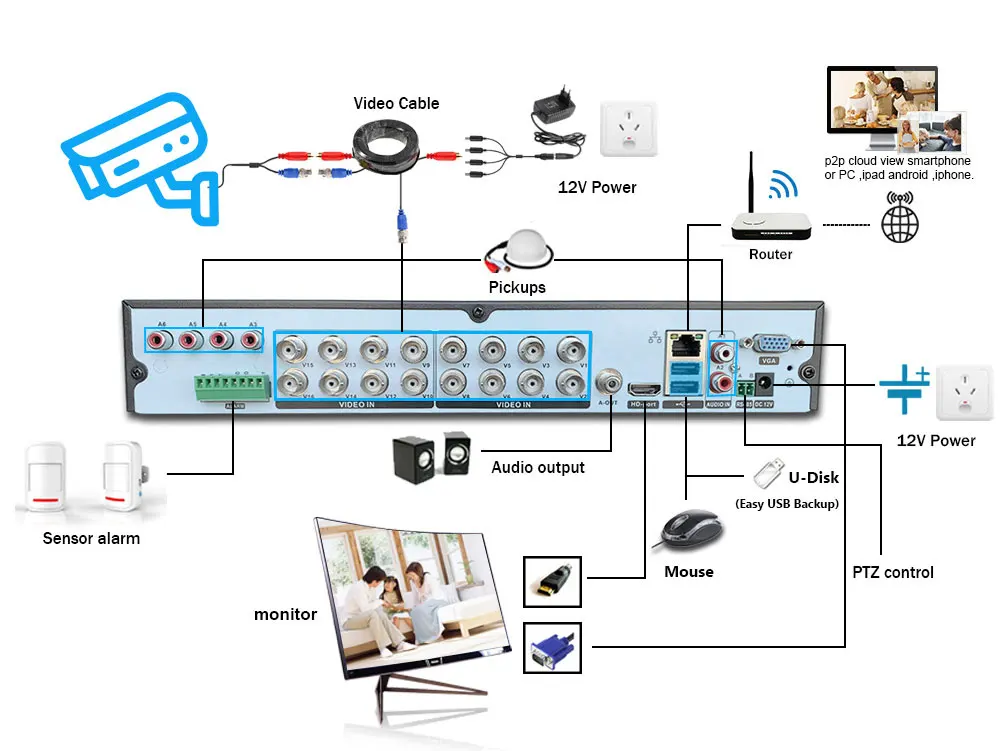

Connection Diagram-HD CCTV Camera System
The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

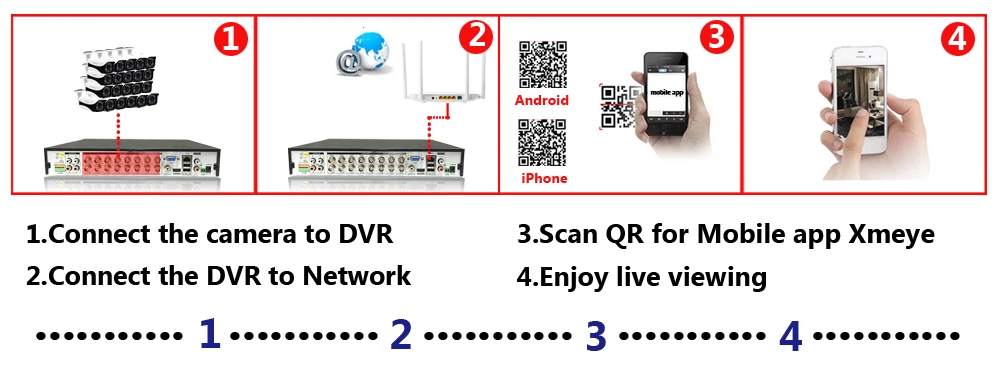

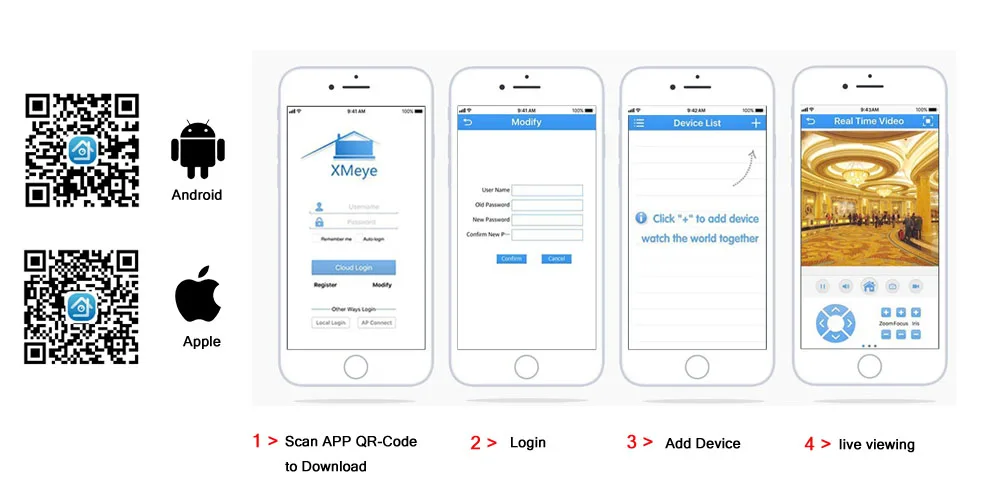

Easy mobile remote view setting
Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!
Product Specifications

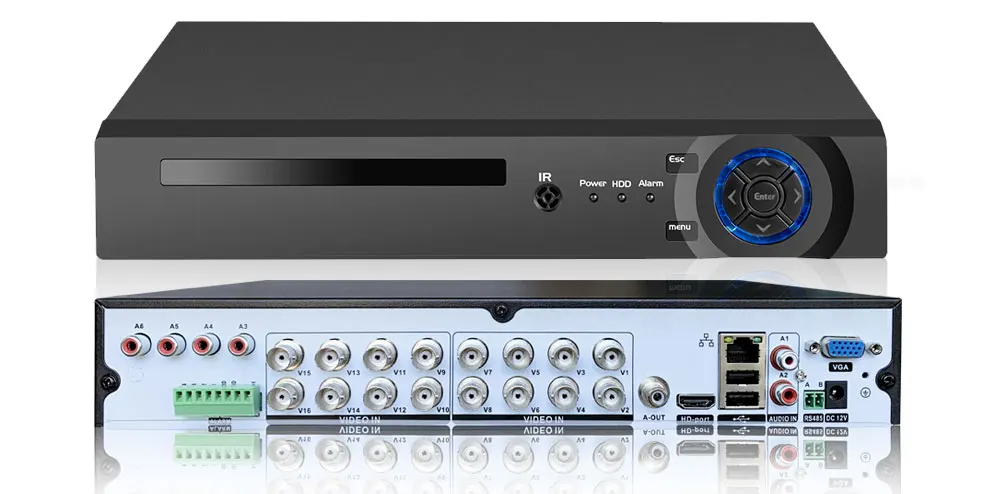

H.265 4K 16CH AHD DVR specifications:
System
Main processor: Embedded processor
Operating system: Embedded Linux
Video compression:H.265
System resource:Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up
Interface
Operation interface:16bit real color GUI interface support
Preview : 1/4/8/9/16
Video
Video standard :PAL; NTSC
Image encode:H.265
Analog input :16CH*8MP/16CH*5MP
Hybird input: 16CH*8MP(Analog)+16CH*8MP(Network)
Network input:16CH*5MP /16CH*8MP/
Motion detection:Support
Email Alert : Support
Audio
Audio compression :G.711A
Intercom : Yes
Record&Playback
Record mode:manual>alarm>motion detection>timing
Local playback:8MP
Video search:Time, date, event, channel search
Storage&Back up
Video storage : Local HDD ,Network
Back up mode: Network backup, USB portable,HDD,USB imprint,SATA imprint
Interface
Video input:16CH BNC
Video output : 1ch VGA,1ch HD output
Loop output : N/A
Audio I/O :6CH input/1CH Output
Alarm I/O:4CH Input/1CH Output
Network port:1* POE RJ45 1000M self-adaptive Ethernet port;
USB port : 2* USB 2.0
HDD port :2 SATA ports,max support 2*8TB(HDD is optional)
Other
Power :DC 12V
USB Mouse:included
Remote Control : included
Temperature : -20℃+50℃
Humidity : -10%-90%
Dimension : L370mm* W305mm* H70mm
Weight :2.5KG
DVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on
HD CCTV Security Bullet camera specifications:
Video
Image sensor:1/3″inch SONY CCD
Video quality:8MP
Lens:3.6mm lens
Day/Night Mode:Full color all day
General
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Operating Temperature:-55°F~122°F / -50°C ~50°C
Operating Power:DC 12V
Weatherproof:yes
Minimum Illumination: 0.001 Lux
Body Construction:Bullet with Built-in Wall Mount
Night Vision
Distance:Up to 40m
IR Cut Filter:yes
Number of IR Lens:2pcs Array IR leds

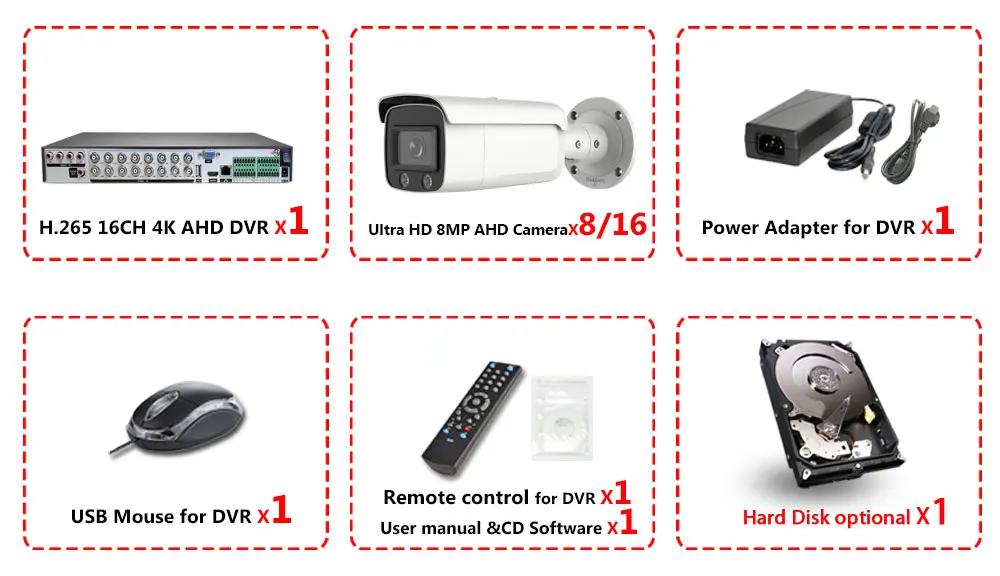

Package list

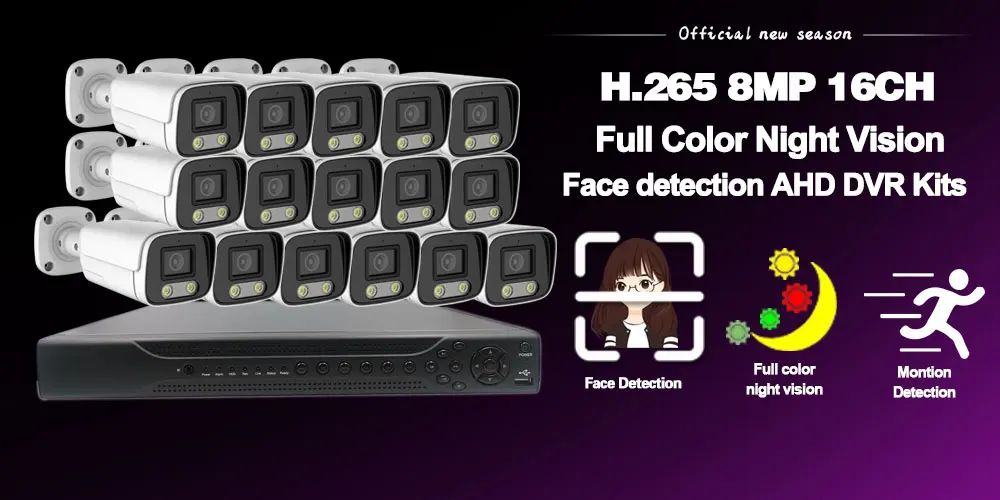

1 X 16CH H.265 AHD 4K DVR NVR HVR 6 in 1 Digital Video Recorder;
8/16 x HD 8.0MP indoor outdoor IR Day Night vision weatherproof cameras;
1 x power adapter for DVR;
1 X USB Mouse for DVR;
1 X Remote Control for DVR;
Hard Disk optional !!!!
Video cable not included !!!!
You can install it by yourself
1.Do not need installation engineer,
2,Save installation free.
3,Control installation time freely,
You can install it in there place
Application:Home,supermarket,hotel,garden,factory,shop office,,,etc,
