Description
Tuya Smart Wifi Switch 220V No Neutral Wire Required 1/2/3 Gang Wall Light Button Switch Support Smart Lfie Alexa Google Home
MAIN FEATURE
App Remote Control
As long as your smart phone or tablet has 4G or WIFI network, you can control your lights by the App “Tuya smart or Smart Life”.
Voice control
Perfectly Compatible with Alexa and Work with Google Home. Turn on/off lights with voice commands when your hands are full.
Timing Setting
Setting a schedule or timer on/off your lights on night and morning, and then your will never go back to a dark house when you go back home at dusk. Moreover, you could quietly waked up by scheduled light on every morning.
Smart Scene
Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.
Sharing&Group Control
Sharing devices with your family members to eliminate extra steps for connection.
SPECIFICATION
Material: V0 PC+ Toughened Glass Panel
Voltage: AC 100-240V 50/60Hz
Rated Current: 10A
Max.power: 600W/Gang
Gang: 1-Gang / 2-Gang / 3-Gang
MCU: BK7132t
Standby power consumption: 0.5W/Hour
Working Temperature: -20°C – 50°C
Working humidity: 5%-95% RH，non-condensing
WIFI Standard: IEEE 802.11bgn 2.4GHz
Network Security: WPA/WPA2”
Dimension: 86*86*40mm
Hub requirement: No
Control Mode: APP/Manual
Installation method: Embedded（86type）EU UK mounting box
Voice Control: Alexa、Google Assistant、SmartThings、DuSmart Speaker、TmallGenie
APP: TuyaSmart/Smart Life
What is in box?
1*Smart wifi switch
1*Capacitor
1*User manual
2*Screws
WiFi Smart Sitch Size
Note
This Tuya wifi switch No Neutral Wire Required

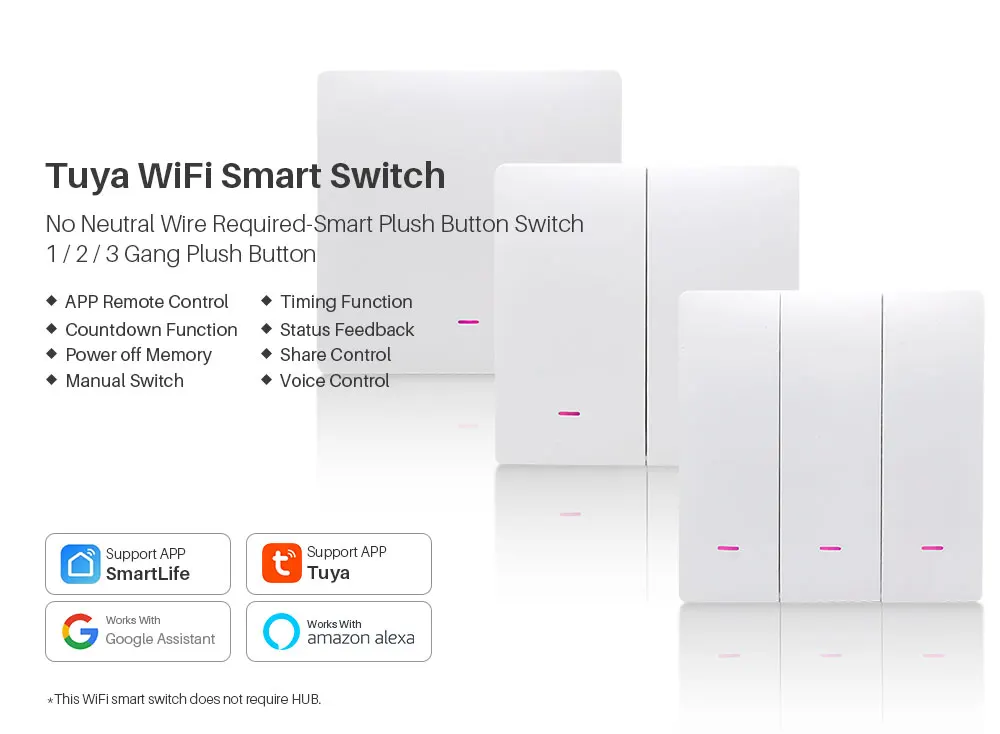

Tuya WiFi Smart Switch
No Neutral Wire Required-Smart Plush Button Switch

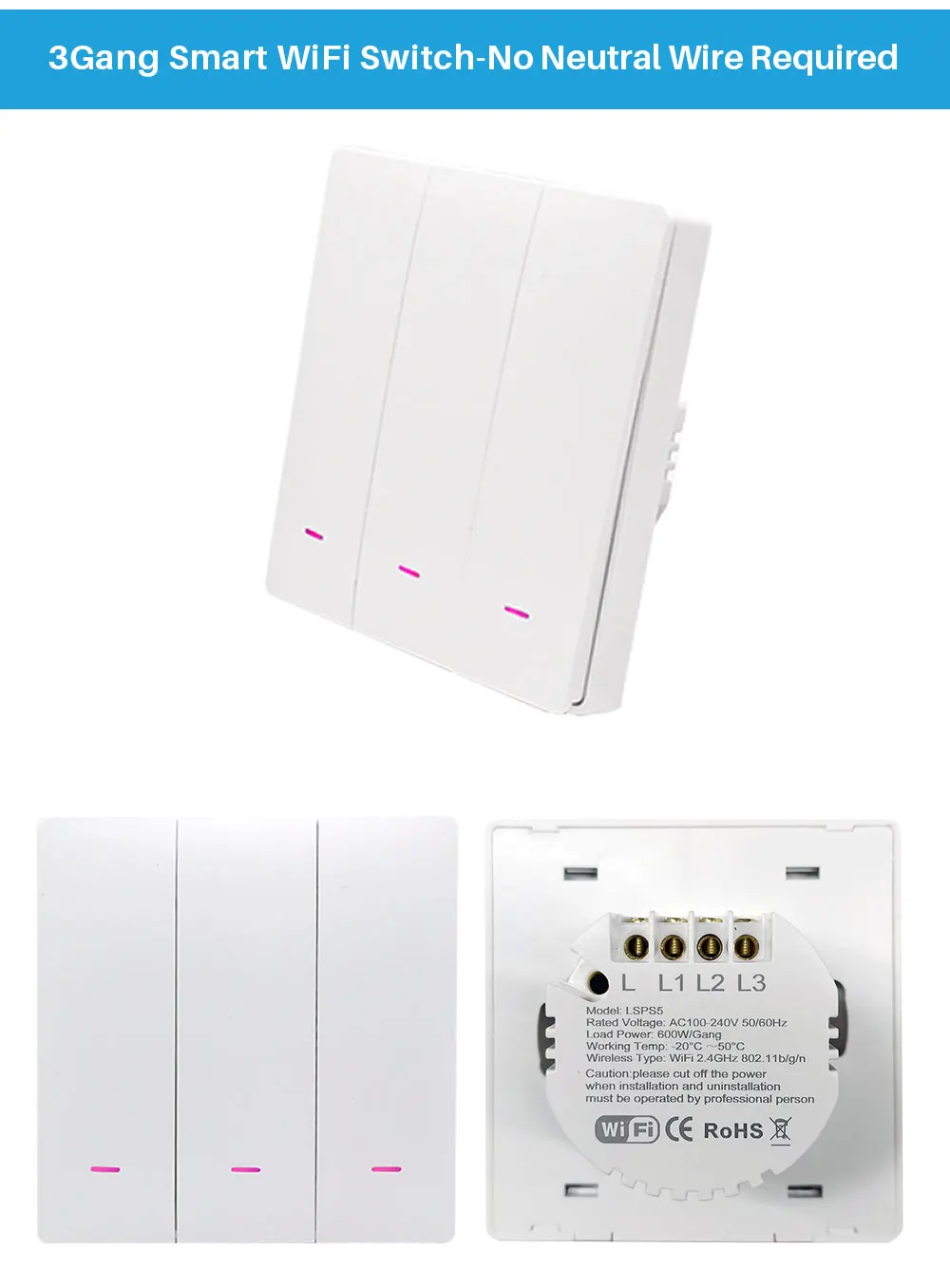

1 / 2 / 3 Gang Plush Button
Two control methods
*Manual Control-Mechanical manual button
*Remote Control-Mobile Phone APP remote control
Timer operation
Customize when the lights turn on or off according to your habits.
Customize multiple sets to support a weekly cycle.
Smart scene connection
Using the scene and automation settings in the APP,connect the switch with other smart devices. For example, When a motion sensor senses human movement, it can automatically turn on the light.
Hands-free Voice Control
Simply give voice command to Alexa or Google Home Assistant to trun on / off lights when you are on go
Sharing&Group Control
Sharing the smart plug with your family members by app to eliminate setup process.

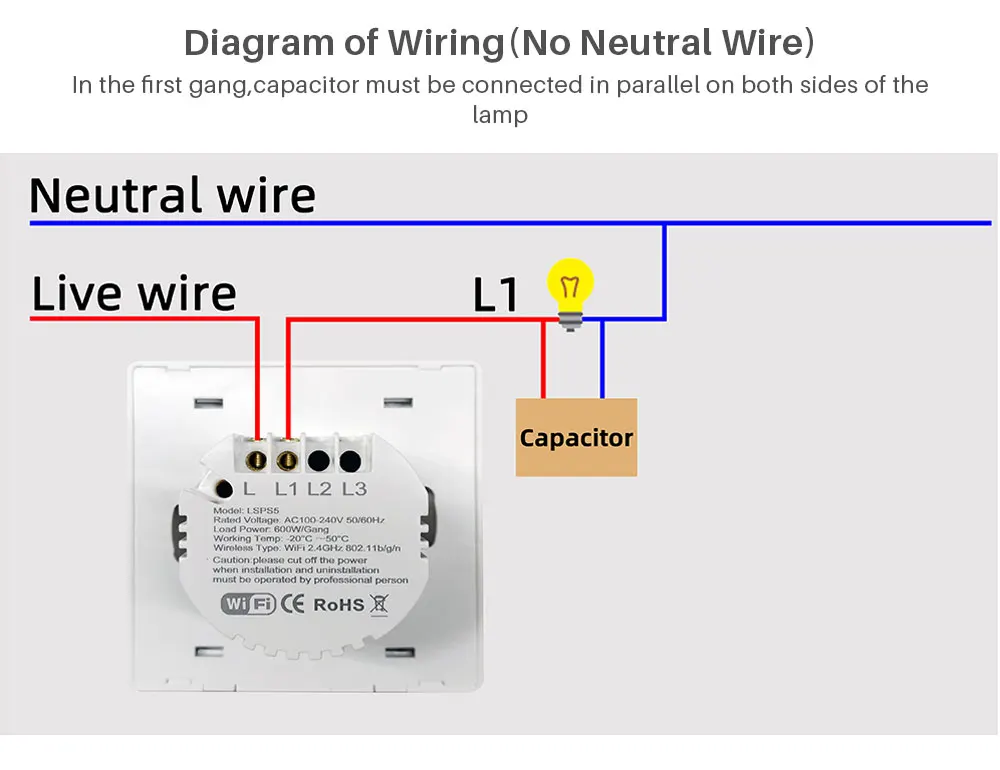

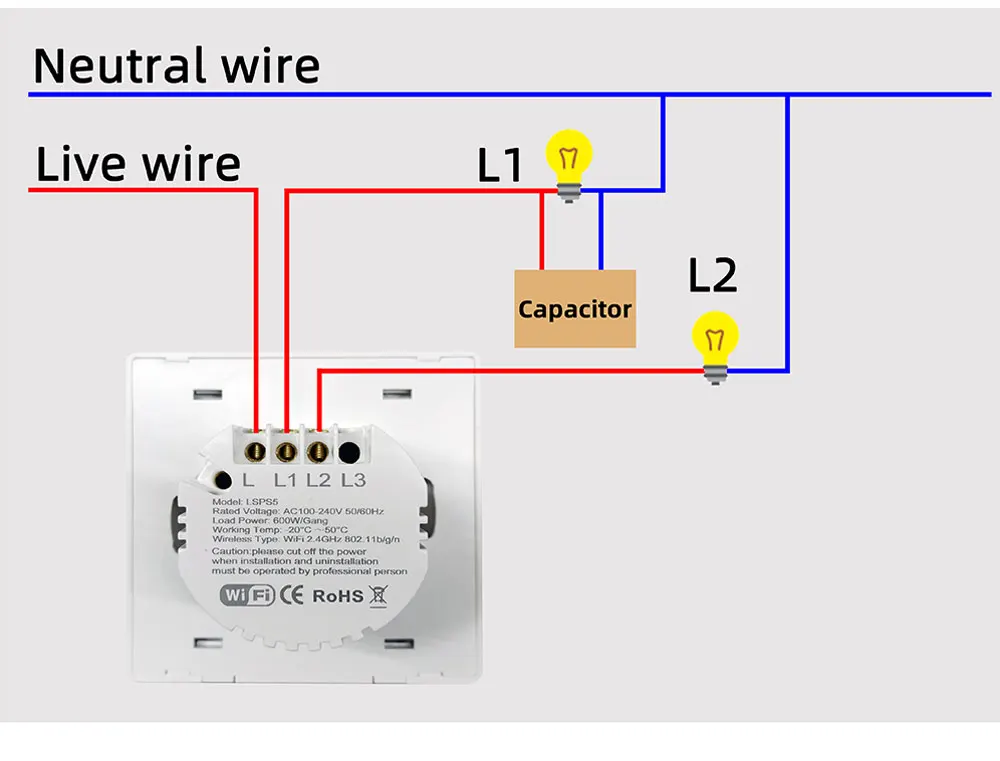

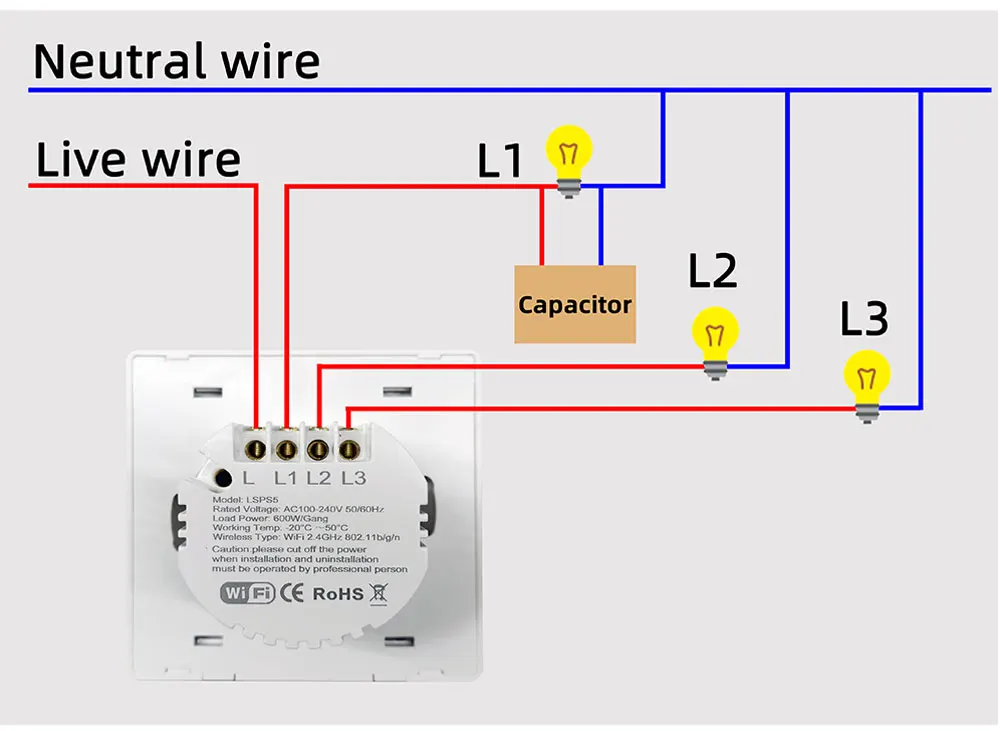

Diagram of Wiring(No Neutral Wire)
In the first gang,capacitor must be connected in parallel on both sides of the lamp
